Circular Trapezoidal Girder Formwork with steel facing

  • For fair-faced concrete - perfect concrete finish (no bolt impressions)
  • Infinitely adjustable for diameters from 5 meters to infinity
  • Only 0.28 - 0.55 ties/m²
  • Delivered ready to use to the construction site
  • Integrated crane lifting clamps
  • Perfectly round and with exact dimensions
  • System solutions for haunch girders and uneven surfaces
Trapezoidal Girder Formwork with steel facing

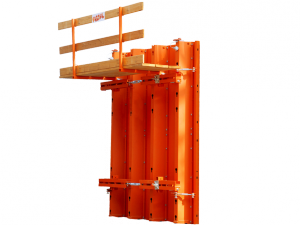

TTS Circular Formwork with steel facing

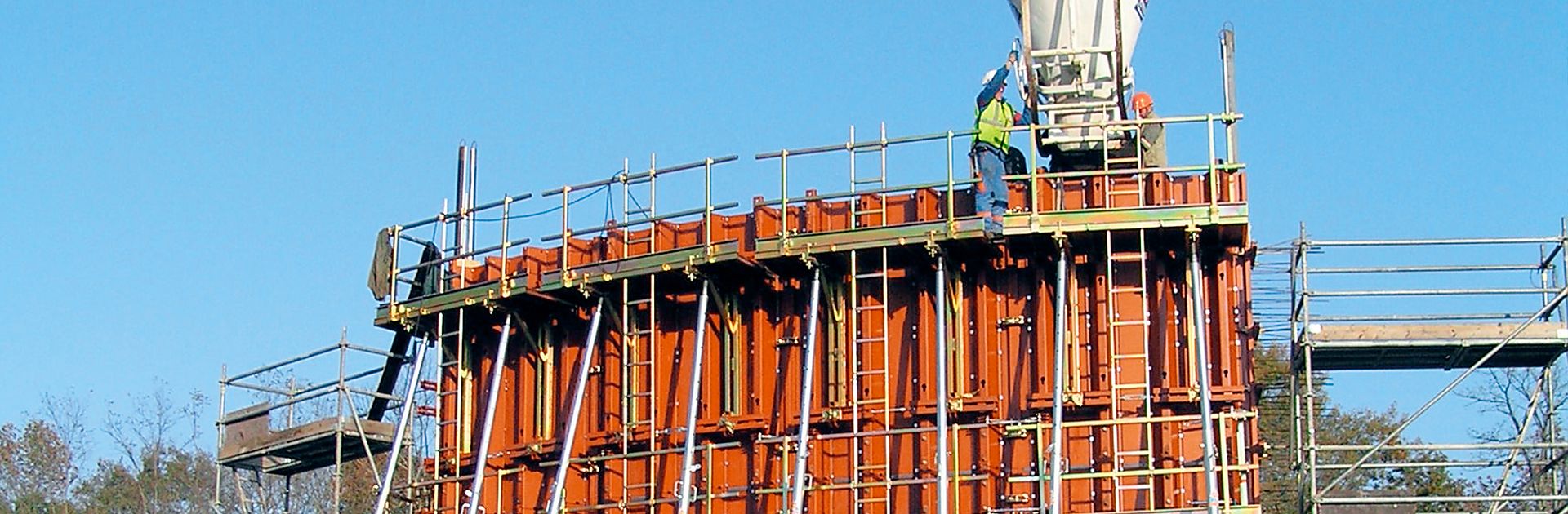

Circular Formwork with adjustable radii for waste water treatment plants, reservoir construction, water parks, towers, stairwells, garage entrances, gardening and landscaping

Technical Data
Segment widths  240 / 230; 120 /115; 60 / 57,5 cm
Segment heights  300 / 150 / 75 cm
Frame depth  40 cm (straight condition)
Max. concrete pressure  80 kN/m² according DIN 18218
Tolerances of deflection  According DIN 18202, table 3, line 7
