Modular /GE Universal Formwork


  • Designed for hand-set applications as well as crane dependant large-size formwork
  • Modular design principle and well-balanced panel selection make gang-forming possible even for complicated layout plans
  • Flat steel frame for guaranteed sturdiness and a long product life cycle
  • Compatible with all PASCHAL systems
  • Keybolt as a universal means of connection for all panels and accessories
  • Large-size panel GE
Modular /GE Universal Formwork

Universal formwork Modular/GE

Universal formwork for foundations, walls, supports, beams, shafts, round solutions (polygons), gardening and landscape construction, precast elements

Technical Data
Panel widths  Modular: 100/75/60/50/45/43/40/37/33/30/25/24/20/15/12/10/6/5 cm
  GE: 200/150 cm
Panel heights  Modular: 150/125/75/62,5 cm
  GE: 275/250/150/125 cm
Frame depth  Modular: 7,5 cm
  GE: 19,5 cm
Plywood  15 mm thick, 11-ply birch plywood
Max. concrete pressure  Modular: 35 kN/m² according DIN 18218
  GE: 60 kN/m² according DIN 18218
Tolerances of deflection  Modular: According DIN 18202, table 3, line 6
  GE: DIN 18202, table 3, line 7


Request Documentation Request a Quote
Order online now

Product design

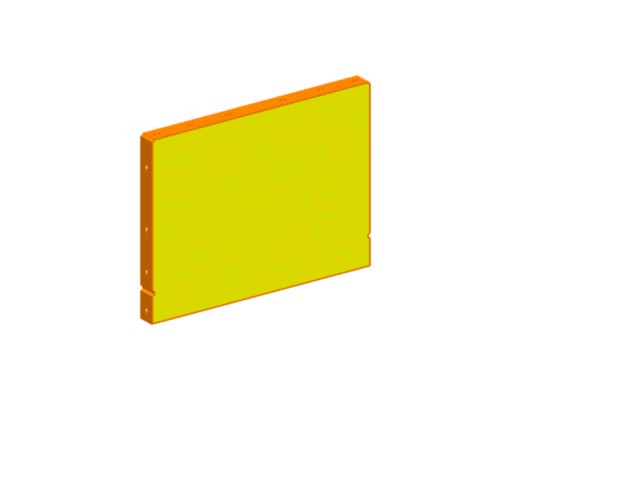

raster animation

Floating Modular panels

The artist Franka Hörnschemeyer shows her current project Opak 519 with floating panels of our Modular formwork at the Museum unter Tage in Bochum from 23 May to 20 October 2019.

Video

Site reports



Eurl ETUHP MENANI ALGERIE





Denning Construction company, Wilferdingen/Germany





TAV, CCC and Arabtec (Abu Dhabi)



Formwork Manual
