NeoR.alu lightweight formwork
Even more ergonomic work with lightweight alu panels
- At only 23 kg, the 75 × 150 cm panel is ideal for crane-independent use and significantly simplifies handling on site.
- Designed for fresh concrete pressures of up to 50 kN/m² and meets the highest precision requirements according to DIN 18202.
- Compatible with all PASCHAL systems: thanks to the steel-to-aluminium connecting pin, aluminium and steel panels can be combined easily.
- The NeoR multi-clamp enables effortless compensation of remaining dimensions, while the NeoR.alu wedge clamp allows quick assembly.
- Durable design for sustainable long-term use.

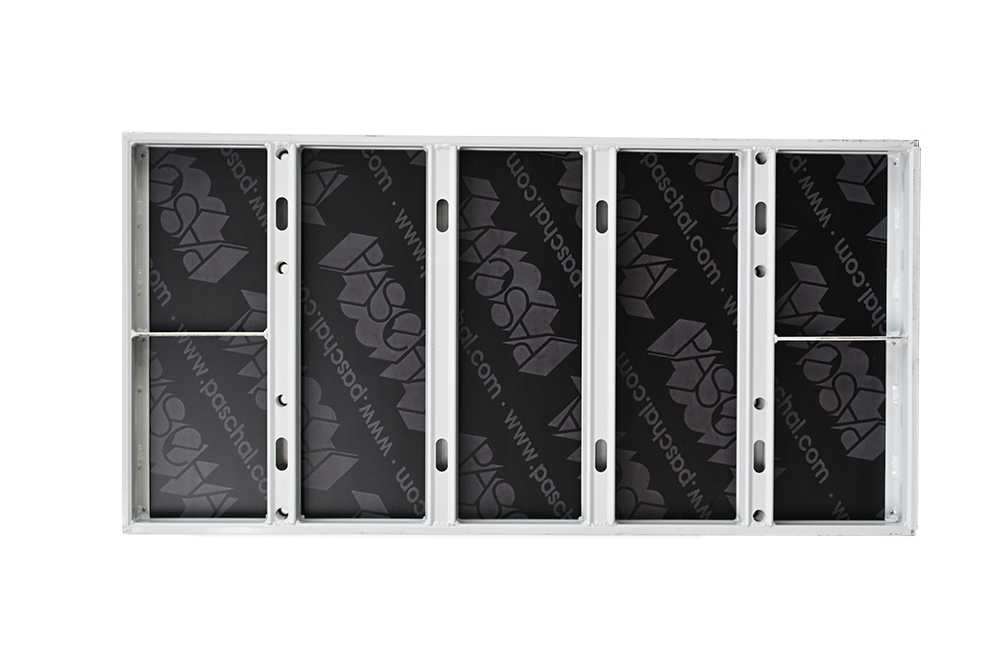

NeoR.alu is the new aluminium panel in the NeoR system and has been specially developed for crane-free use on site. It combines low weight with high performance and proven PASCHAL quality.
| Technical Data | |
|---|---|
| Panel width | 75 cm |
| Panel height | 150 cm |
| Frame depth | 7,5 cm |
| Plywood | 12 mm birch plywood |
| Max. concrete pressure | 50 kN/m² according DIN 18218 |
| Tolerances of deflection | According DIN 18202, table 3, line 6 |
