Concrete screw completes the assortment of PASCHAL adjustable props

With the new concrete screw, PASCHAL can now offer its customers a fastening solution for the assembly of adjustable props.

PASCHAL has extended its range of product to include the new concrete screw 16 x 130. Thanks to the optimised concrete thread and an extremely adaptable cone, the innovative screw anchor is ideally suited for the temporary fixing of construction site equipment such as slab props, push-pull props, fall protection or scaffolding in concrete and formwork construction.

With this, PASCHAL rounds up its range of adjustable props with a quick and time-saving fixing solution and can therefore offer its customers everything from one single source in the future.

Installation of the concrete screw
Thanks to the optimised concrete thread, it can be used for time-saving and fast assembly of adjustable props in young concrete.

User-friendly assembly

The concrete screw is screwed directly into a pre-drilled hole in the concrete surface without the use of a dowel and can be immediately subjected to loads.
It is also possible to dismantle and re-install the concrete screw at any time — which saves costs on the construction site. The multiple use can be checked very easily by means of the enclosed test sleeve.

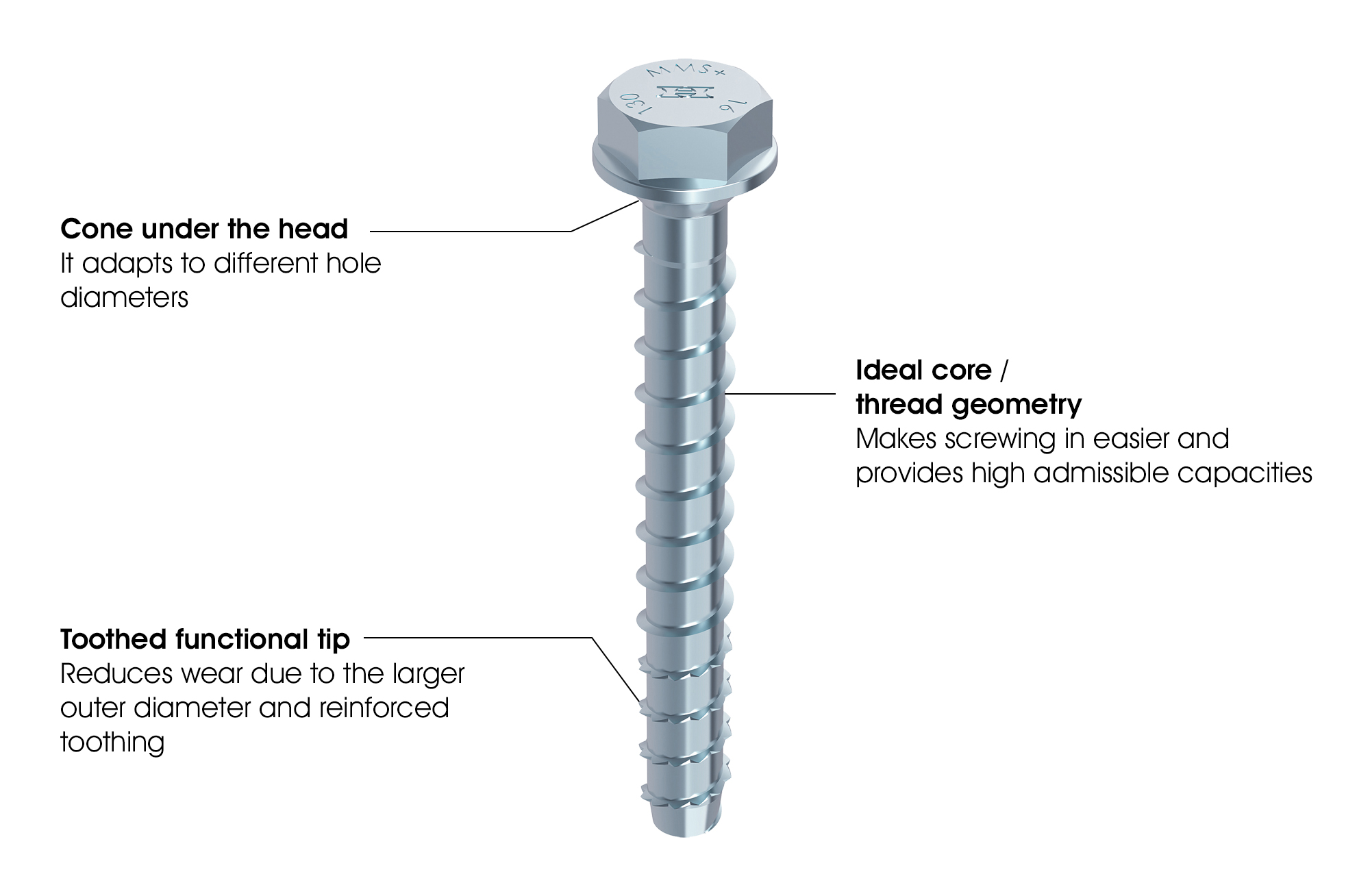

Optimised concrete thread with large surface area

Thanks to reinforced toothing on the bolt tip, the concrete screw is easy to set and it is also less susceptible to wear and tear. The higher outer diameter at the tip and the load-bearing thread ensures an optimal undercut in the concrete and thus allows higher loads.

The integrated cone under the head adapts to different hole diameters.

Details of the concrete screwThe concrete screw 16 x 130 is a self-tapping, reusable screw anchor for the temporary fastening of site equipment in concrete and formwork construction.
