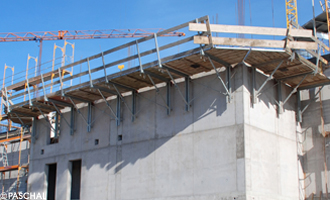

Climbing platform KBK 180


  • with all formwork types compatible
  • platform folds up for low transport volume
Climbing platform KBK 180

Climbing platform KBK

Work and jacking scaffold, which comes fully assembled and ready to use on-site.

Technical Data
Platform width  180 cm
Platform length  295 cm; corner platforms: 390 cm
Bracket spacing  200 cm
Maximum loads  3 kN/m² as climbing platform carrying formwork
  4,5 kN/m² as working platform without formwork
  2 kN/m² as working and safety platform with drop-in loop according to DIN 4420
Anchoring  Clevis shoe M24 with screw anchor
  Clevis shoe M30 with anchor cone
  Drop-in loops according to DIN 4420
Accessories  Corner platforms, single brackets, connection part for drop-in loops, clevis shoe M30, bracket extensions, railing posts for lateral protection, suspended scaffold, traps, Drop-in loops as per DIN 4420


Request Documentation Request a Quote
Order online now

We are here for you



You would like to know more about our products and services?



CONTACT US!

+49 7832 71-0

service@paschal.com


General Construction Supervisory Approval (called abZ)

Climbing Cone M30/DW15


Climbing Cone M30/DW15


By obtaining the General Technical Approval for the PASCHAL Climbing Cone M30/DW15 a standardized system to anchor climbing brackets is available for all PASCHAL climbing and platform systems.
Hereby the PASCHAL Climbing system 240, the Climbing system 200, the Climbing platform KBK, Dam bracket and the Lifting platform for shafts can be dimensioned by secured parameters.
