Large-Size Formwork Athlete


  • Extremely small number of ties (0.57 ties/m²)
  • Quick element connection via Athlete clamp system
  • High stability and excellent alignment due to 16cm frame height
  • Quick accessory fastening on multi-functional cross profiles
  • Vertical or horizontal deployment for all panels
  • Multi-purpose panel for corners, columns, stop-ends
  • Well balanced panel selection for system forming without on-site solutions
Large-Size Formwork Athlete

Formwork for extremely high concrete pressures

Formwork for extremely high concrete pressures (particularly SVB and easily compacted concrete)

Technical Data
Panel widths  250/125/70/65/60/55/50/45/30 cm
Panel heights  280/250/140/70 cm
Frame depth  16 cm
Plywood  18 mm thick, 13-ply birch plywood
Max. concrete pressure  92kN/m² according DIN 18218
Tolerances of deflection  According DIN 18202, table 3, line 7


Request Documentation Request a Quote

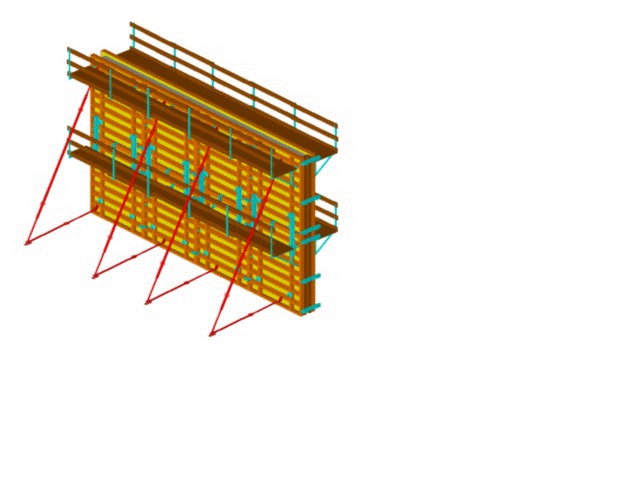

Product design

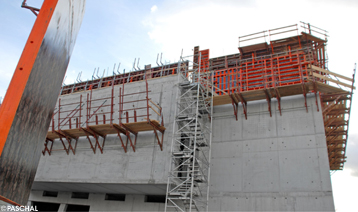

Site reports



Co. Fechtelkord & Eggersmann GmbH, Marienfeld (Germany)
www.theater-gt.de




Emil Steidle
GmbH & Co KG, Sigmaringen

www.steidle.de


Formwork Manual
